 - 48 FS
MINIMAL FOLD SLIDE THERMAL SYSTEM
Technical characteristics
Bottom track height 60 / 76 mm
Floor step 0 /12 /28 / 48 / 60 / 64 / 76 mm
Frame Height, Horizontal Top 83 / 100 mm
Frame Height, Vertical 57 mm
Frame Width 60 mm
Floor Typology Step, Submerged
Riding Typology Bottom Rolling
Sliding / Alignment rollers Stainless Steel
Sash Height, Vertical 30 mm
Sash Height, Horizontal 30 mm
Sash Width 60 mm
Centre Mullion Height 74 mm
Max. Weight per Sash 130 Kg
Max. Sash Width 1300
Max. Sash Height 3000
Opening type Fold Slide
Glazing Width Possibilities 32/45mm
Maximum Locking Points 5
Sealing Type 4 Gaskets
Performances
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) ≥1.0 W/(m2K)
FLOOR
TYPOLOGIES
MIDDLE
TYPOLOGIES

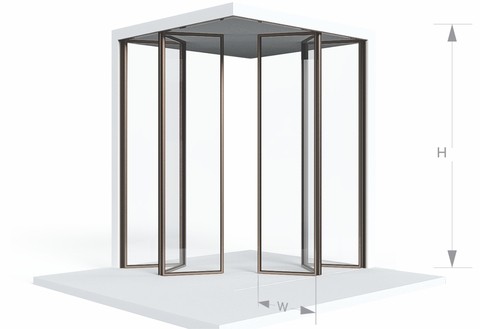

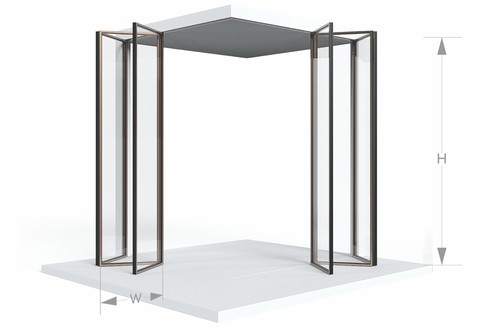

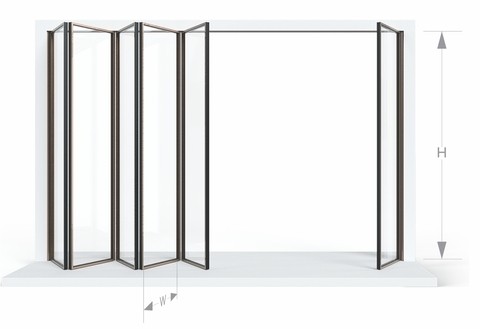

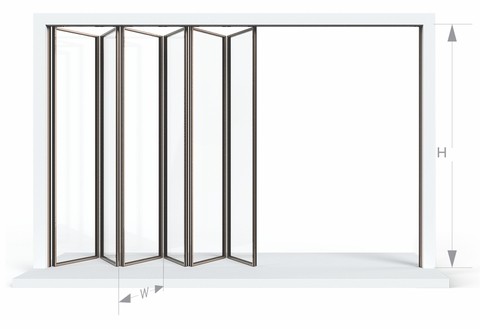

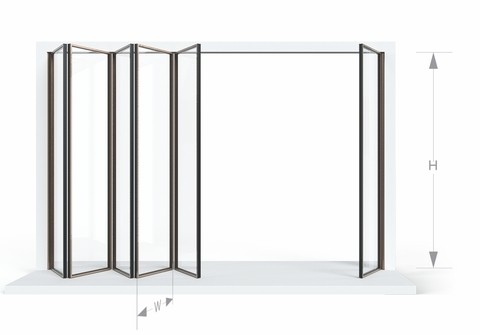

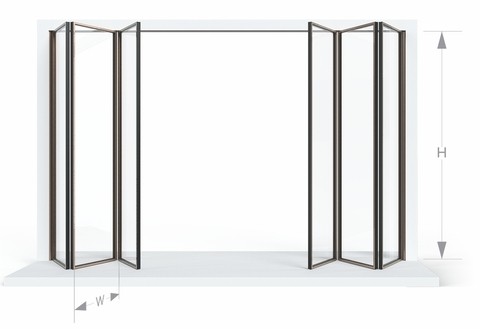

CONSTRUCTION
TYPOLOGIES

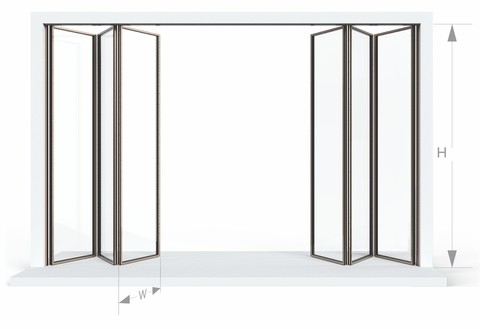

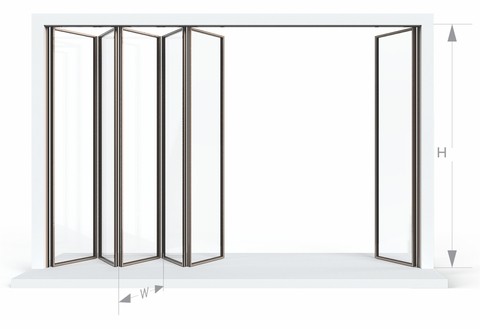

Step With Overlap

Step

Submerged, Pipe

Submerged, Pipe, Fin

Submerged, Inline Gutter, Fin

Submerged, External Gutter, Fin

Submerged, Interior

Submerged, Interior
