SLIM FOLD SLIDE THERMAL SYSTEM
| Technical characteristics | |
|---|---|
| Bottom track height | 60 / 76 mm |
| Floor step | 0 /12 /28 / 48 / 60 / 64 / 76 mm |
| Frame Height, Horizontal Top | 83 / 100 mm |
| Frame Height, Vertical | 57 mm |
| Frame Width | 60 mm |
| Floor Typology | Step, Submerged |
| Riding Typology | Bottom Rolling |
| Sliding / Alignment rollers | Stainless Steel |
| Sash Height, Vertical | 39 mm |
| Sash Height, Horizontal | 39 mm |
| Sash Width | 60 mm |
| Centre Mullion Height | 92 mm |
| Max. Weight per Sash | 130 Kg |
| Max. Sash Width | 1300 |
| Max. Sash Height | 3500 |

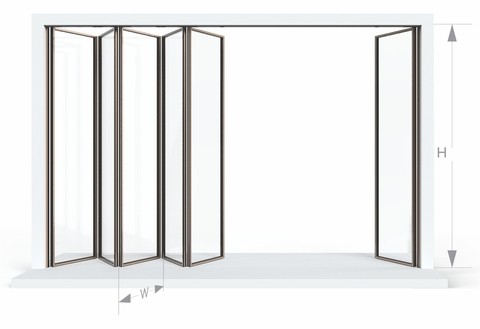

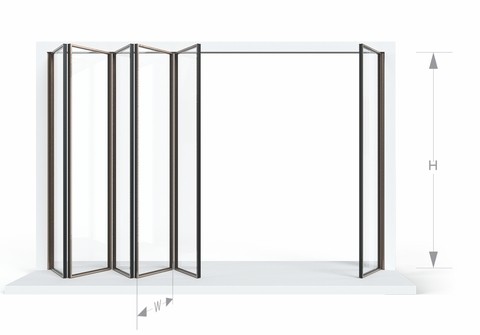

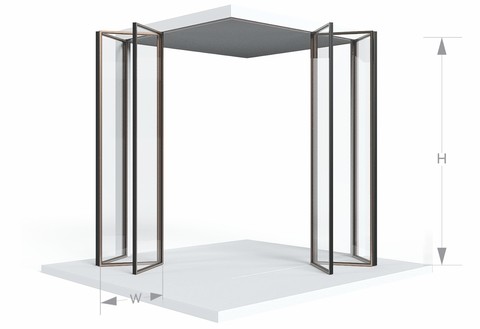

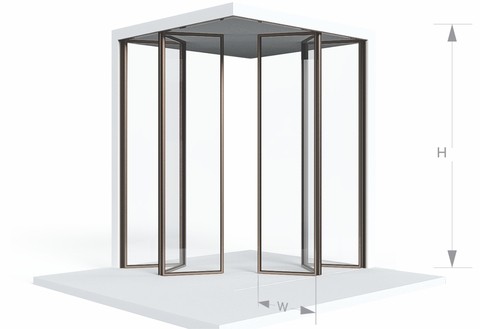

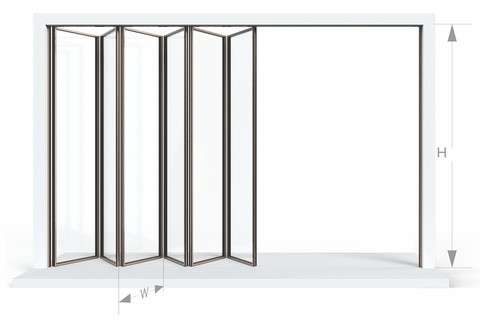

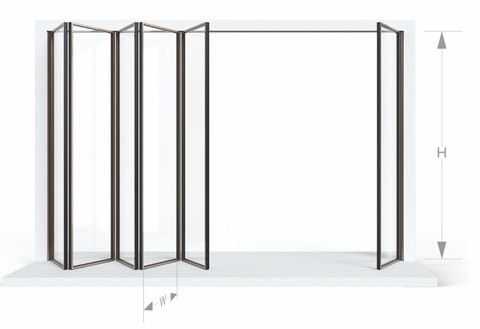

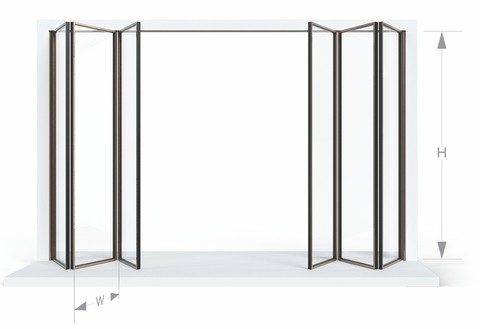

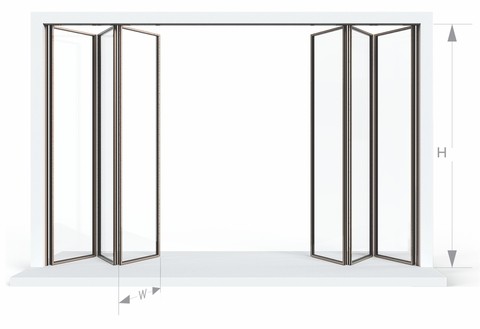

| Opening type | Fold Slide |
| Glazing Width Possibilities | 32/45mm |
| Maximum Locking Points | 5 |
| Sealing Type | 4 Gaskets |
| Performances | |
|---|---|
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | ≥1.0 W/(m2K) |
